Elm Architecture

elm architecture

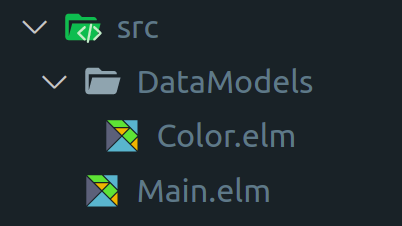

Modules

Way to organize files
Each file begins with module keyword
Name has to contain full path from root, separated with a dot


							module Main exposing (..)


							module DataModels.Color exposing (..)

You can expose everything or only selected functions and types


						-- exposing everything
						exposing (..)


						-- exposing certain functions
						exposing (init, encode, decoder)


						-- exposing union type
						exposing (Color)

						-- exposing union type AND type values
						exposing (Color(..))

Importing


						import DataModels.Color

						> DataModels.Color.Blue


						import DataModels.Color exposing (..)

						> Blue


						import DataModels.Color exposing (init, toString)

						> Blue -- not found


						import DataModels.Color as Color

						> Color.Blue

Common pattern


						import DataModels.Color as Color exposing (Color, colorDecoder)

						> giveMeRed : Color
						  giveMeRed =
						  	Color.Red

						> Color.init

						> Color.toString

						> colorDecoder

Commands

and

Subscriptions

Communication with the outside world

Side effects? 👎
Managed effects. 👍

Cmd and Sub modules have functions that work nicely with them

Main

There are several ways to initialize your elm app Module Browser exposes the following functions:

sandbox - no effects, only for learning
element - effects, your app is a node in DOM
document - also manages page title
application - also manages URL changes

The whole program is described with a Program type, parameterized with types of your choosing


						Program flags model msg

flags - type of input parameters, there is a way to ignore them
model - type of your main model, usually a record
msg - type of the events that can flow through the program, usually a union type

Example with an element


						{ init 			: flags -> ( model, Cmd msg )
						, view 			: model -> Html msg
						, update        : msg 	-> model -> ( model, Cmd msg )
						, subscriptions : model -> Sub msg
						}


						{ init = init
						, view = view
						, update = update
						, subscriptions = subscriptions
						}

init


					init : flags -> ( model, Cmd msg )


						type alias InputParams = { currentTime : String }

						type alias Model =
							{ timeOfInitialization : String
							, messages : List String
							, typedValue : String
							}

						init : InputParams -> ( Model, Cmd msg )
						init inputParams =
							( { timeOfInitialization = inputParams.currentTime
							  , messages = []
							  , typedValue = ""
							  }
							, Cmd.none
							)

Initializing program without flags?

Unit type.


						Program () Model Msg
						...
						init : () -> ( Model, Cmd msg )
						init _ =
							...

view


						view : model -> Html msg


					import Html exposing (Html)
					...
					view : model -> Html msg

Elm manages its own Virtual DOM

Html and Html.Attributes modules have a function for every HTML element / attribute




								This is some
								serious
								stuff


						import Html exposing (Html)
						import Html.Attributes as Attr
						...
						view : Model -> Html msg
						view model =
							Html.div [ Attr.id "main", Attr.class "blue" ]
							[
								Html.p [ Attr.class "red" ]
								[
								  Html.text "This is some"
								, Html.span [ Attr.class "purple-text" ]
									[ Html.text "serious" ]
								, Html.text "stuff"
								]
							]


						import Html.Events exposing (onInput, onClick)
						...
						type Msg = Input String | Click
						...
						view : Model -> Html Msg
						view model =
							div []
								[ input [ type_ "text", onInput Input ] []
								, button [ onClick Click ] []
								]


						onInput : (String -> msg) -> Attribute msg


						> Input : (String -> Msg)

update


						update : msg -> model -> ( model, Cmd msg )


						update : Msg -> Model -> ( Model, Cmd Msg )
						update msg model =
							case msg of
								Input str ->
									( { model | typedValue = str }
									, Cmd.none
									)

								Click ->
									( model, WebSocket.sendMessage model.typedValue )


						-- For multiple commands
						Cmd.batch [ cmd1, cmd2 ]

State management


					view model =
						...
						input
							[ type_ "text"
							, onInput Input
							, value model.typedValue
							]
							[]


					update msg model =
						...
						Click ->
							( { model | typedValue = "" }
							, WebSocket.sendMessage model.typedValue
							)

subscriptions


						subscriptions : model -> Sub msg


						type Msg =
							...
							| MessageReceived String

						subscriptions : Model -> Sub Msg
						subscriptions model =
							Sub.batch
								[ WebSocket.onMessage MessageReceived
								]


						onMessage : (String -> msg) -> Sub msg


						-- Error:
						-- This `case` does not have branches for all possibilities
						--
						-- Missing possibilities include:
						-- `MessageReceived`


						update msg model =
							...
							MessageReceived message ->
								( { model | messages = message :: model.messages
								  }
								, Cmd.none
								)


						(::) -- "cons" operator
						-- adds to the beginning of the list
						-- can be used for pattern matching


						sum : List number -> number
						sum list =
							case list of
								[] ->
									0
								head :: rest ->
									head + sum rest


						length : List a -> a
						length list =
							case list of
								[] ->
									0
								_ :: rest ->
									1 + length rest


						view model =
							let
								viewMessage message =
									li [] [ text message ]
							in
							div []
								[ input
									[ type_ "text"
									, onInput Input
									, value model.typedValue
									]
									[]
								, button [ onClick Click ] [ text "Send" ]
								, ul [] <| List.map viewMessage model.messages
								]

Compiling

Generate JavaScript file


						$ elm make src/elm/Main.elm --output=build/elm.js

Create a custom HTML file


						<body>

						</body>
						<script src="build/elm.js"></script>

Embed your elm program


						<script>
							Elm.Main.init({
								node: document.querySelector('#elm'),
								flags: {
									currentTime: new Date().toLocaleTimeString()
								}
							});
						</script>

Add additional HTML elements, JS/CSS code as you wish...

Ports

Ports allow communication between Elm and JavaScript


						-- Module has to be declared as port
						port module WebSocket exposing (..)

They are functions that have no definition


						-- elm -> js
						port sendMessage : String -> Cmd msg

						-- js -> elm
						port onMessage : (String -> msg) -> Sub msg

To handle them in JS


						const app = Elm.Main.init();

						// elm -> js
						app.ports.sendMessage.subscribe((message) => {
							ws.send(message);
						});

						// js -> elm
						app.ports.onMessage.send(message);

Tasks

They describe asynchronous operations that may fail, like HTTP requests or DOM manipulations

Example with fetching time


						import Time  -- elm install elm/time
						import Task

						type Msg
							= Click
							| NewTime Time.Posix

						getNewTime : Cmd Msg
						getNewTime =
							Task.perform NewTime Time.now

Example with scroll


						import Browser.Dom as Dom
						import Task

						type Msg
							= NoOp

						jumpToBottom : String -> Cmd Msg
						jumpToBottom id =
							Dom.getViewportOf id
								|> Task.andThen (\info -> Dom.setViewportOf id 0 info.scene.height)
								|> Task.attempt (\_ -> NoOp)

Encoders

and

Decoders

Package Json.Encode helps to convert Elm values into Value which represents a JavaScript value, or into a JSON string.

Json.Encode.Value can be sent through ports to JS.


						import Json.Encode as JE

						encode : Person -> JE.Value
						encode person =
							JE.object
								[ ( "name", JE.string person.name )
								, ( "age", JE.int person.age )
								, ( "height", JE.float person.height )
								]

Package Json.Decode turns JSON values into Elm values.

Json.Decode.Value can be received as a flag or through ports from JS.


						module Json.Decode exposing (..)

						import Json.Encode

						type alias Value = Json.Encode.Value

Package Json.Decode.Pipeline makes it easier to create decoders for objects/records.


						import Json.Decode as JD
						import Json.Decode.Pipeline as JDP

						personDecoder : JD.Decoder Person
						personDecoder =
							JD.succeed Person
								|> JDP.required "name" JD.int
								|> JDP.optional "age" JD.string 20
								|> JDP.hardcoded 1.8

Once you create a decoder you can use functions decodeString/decodeValue.
Those functions both return a Result type.


						decodeValue : Decoder a -> Value -> Result Error a


						type Result error value
							= Ok value
							| Err error


						res =
							JD.decodeValue JD.string value

						parseString =
							case res of
								Ok value ->
									value

								Err error
									let
										_ = Debug.log "Error" error
									in
									""

Nested modules


						module Login exposing (..)

						init = ...
						view = ...
						update = ...
						subscriptions = ...


						module Chat exposing (..)

						init = ...
						view = ...
						update = ...
						subscriptions = ...


						module Main exposing (..)

						import Login
						import Chat

						type Model
							= LoginModel Login.Model
							| ChatModel Chat.Model

						type Msg
							= LoginMsg Login.Msg
							| ChatMsg Chat.Msg

						main =
							Browser.element ...


						> LoginMsg : Login.Msg -> Msg


						init : () -> ( Model, Cmd Msg )
						init _ =
							( LoginModel Login.init
							, Cmd.none
							)


					view : Model -> Html Msg
					view model =
						case model of
							LoginModel loginModel ->
								Login.view loginModel -- Error

							ChatModel chatModel ->
								Chat.view chatModel -- Error


					> Html Login.Msg -> Html Msg ???


					> Html.map : (a -> b) -> Html a -> Html b


					view : Model -> Html Msg
					view model =
						case model of
							LoginModel loginModel ->
								Login.view loginModel |> Html.map LoginMsg

							ChatModel chatModel ->
								Chat.view chatModel |> Html.map ChatMsg


					update : Msg -> Model -> ( Model, Cmd Msg )
					update msg model =
						case ( msg, model ) of
							( LoginMsg loginMsg, LoginModel loginModel ) ->
								handleLoginMsg loginMsg loginModel

							( ChatMsg chatMsg, ChatModel chatModel ) ->
								handleChatMsg chatMsg chatModel

							_ ->
								( model, Cmd.none )


						handleLoginMsg : Login.Msg -> Login.Model -> ( Model, Cmd Msg )
						handleLoginMsg loginMsg loginModel =
							let
								( updatedLoginModel, loginCmd ) =
									Login.update loginMsg loginModel
							in
							( LoginModel updatedLoginModel
							, Cmd.map LoginMsg loginCmd
							)


						handleChatMsg : Chat.Msg -> Chat.Model -> ( Model, Cmd Msg )
						handleChatMsg chatMsg chatModel =
							let
								( updatedChatModel, chatCmd ) =
									Chat.update chatMsg chatModel
							in
							( ChatModel updatedChatModel
							, Cmd.map ChatMsg chatCmd
							)


					subscriptions : Model -> Sub Msg
					subscriptions model =
						case model of
							LoginModel loginModel ->
								Login.subscriptions loginModel |> Sub.map LoginMsg

							ChatModel chatModel ->
								Chat.subscriptions chatModel |> Sub.map ChatMsg

Exercise: Implement switching between modules
(log in / log out)
